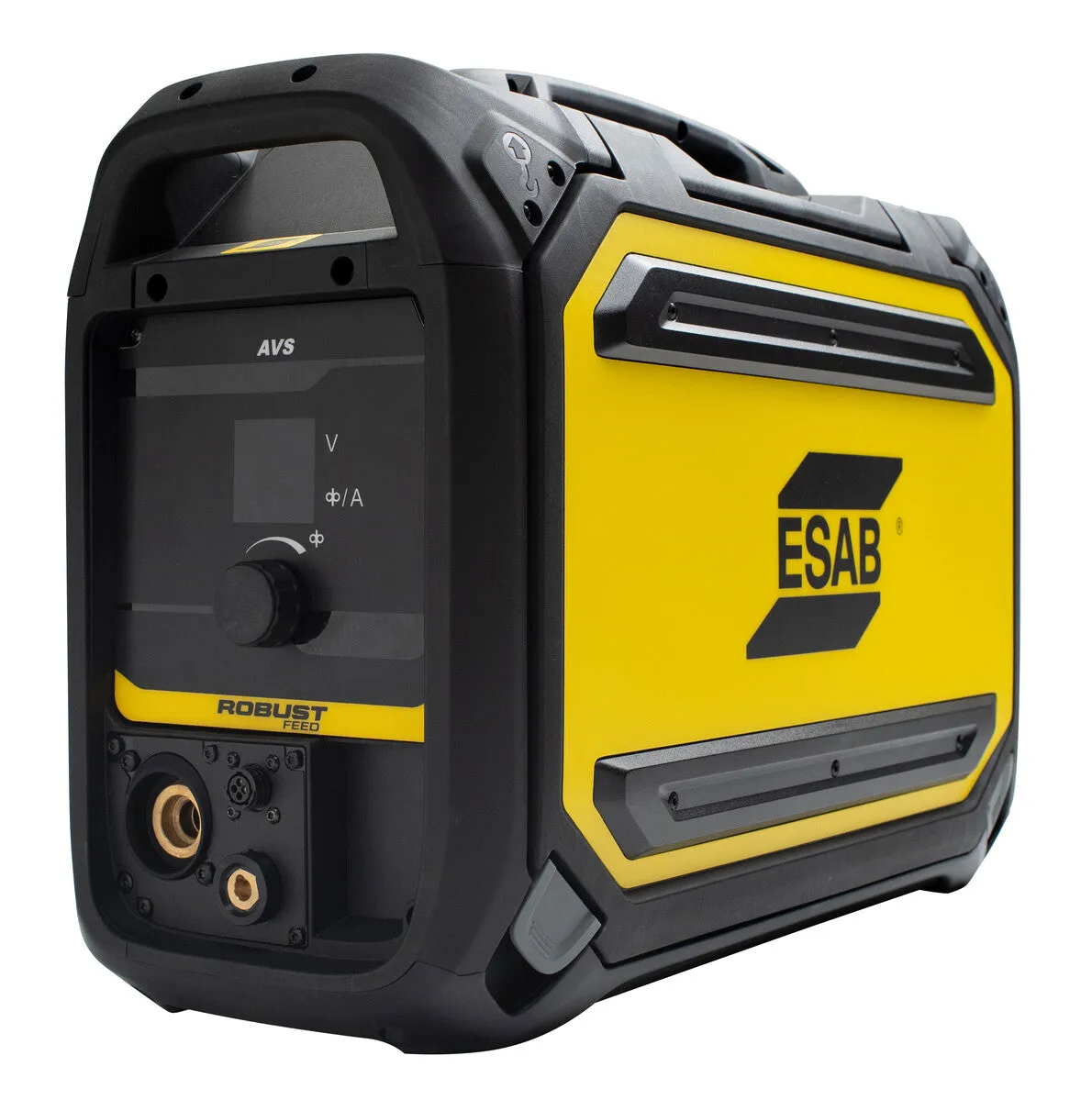

ESAB RobustFeed AVS Tweco 0446700883
Dirt. Drops. Mud. Rain. Game on. You are a welder, and you are not afraid to get your hands dirty. You work in some of the toughest conditions, and you need equipment you can take anywhere. That is why we created RobustFeed–our most durable, ergonomic, and high-performing wire feeder yet.
The RobustFeed, with its ergonomic, robust and enclosed design, is the ideal partner whenever portability and durability are key. These welding wire feeders are equipped with a new precision wire drive system perfect for demanding applications.
Top Features:
- Includes Gas Flow Meter
- Quick-change, four-roll drive reduces downtime and provides consistent feeding results. Rolls are easily changed from one wire size to another without the need for tools
- Digital meters for Voltage and WFS ensure more arc time, are labor-savingand beneficial for critical welds using specific welding procedures
- Durable, drop-proof housing that withstands demanding applications
- Weatherproof, enclosed design that withstands rain from all directions ensures the filler metal is kept dry
- A versatile voltage-sensing wire feeder for use with any CV or CC welding power supply
- Full use of the Robust Feed family accessories such as wheel kit and strain reliefs make this feeder the perfect solution for the toughest applications
Specifications
| Input Voltage, Max | 14 -100 VDC |
| Welding Output |
500 A @ 40% |
|
Wire Dimensions |
|
|
Wire Feed Speed |
1.3 –25.0 m/min (51–984 ipm) |
|
Wire Spool Capacity |
20 kg (44 lbs) |
|
MaxSpool Diameter |
300 mm (12 in.) |
|
Operating Temperature |
-20°to 55°C (-4 to 131 °F) |
|
Protection Class |
IP44 |
|
Certification Mark (Standards) |
CE,CSA,RCM,CCC,EAC,IEC |
|
Dimensions L x Wx H, incl. top handle |
595 x 250 x 430 mm (23.4 x 9.8 x 16.9 in.) |
|
Weight |
18.37 kg (40.5 lbs) |
